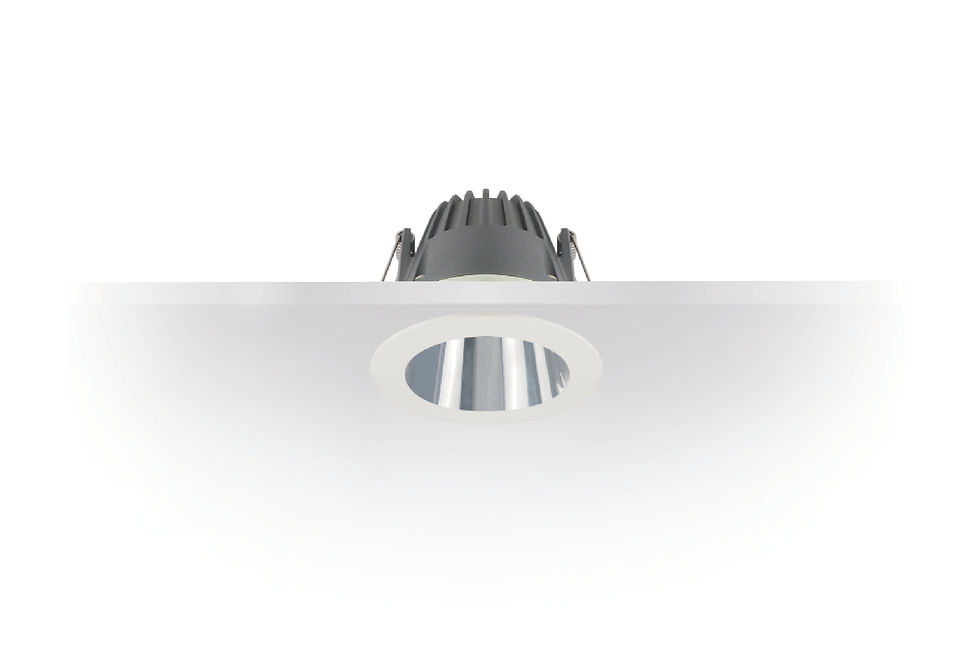

Helium
Downlight
5 cut-out options: 75, 90, 120, 150, 200 mm
Available in fixed or flood beam distributions
Product Features
Deep Baffle Anti-Glare
The light source is deeply recessed to effectively reduce eye irritation, providing a soft and comfortable light that protects the eyes light is visible without the fixture being seen.
Efficient Heat Dissipation Design
The luminaire and heat sink are integrally formed, featuring a special airflow design to maximize heat dissipation efficiency and extend the lifespan of the product.
D6-3-B
100-240Vac 50/60Hz
5
250lm
58°
2700K/3000K/4000K/Tunable
≧90
D6-3-B-D
100-240Vac 50/60Hz
7
390lm
20°/36°
2700K/3000K/4000K/Tunable
≧90
D6-4-B
100-240Vac 50/60Hz
8
570lm
65°
2700K/3000K/4000K/Tunable
≧90
D6-4-B-D
100-240Vac 50/60Hz
11
630lm
15°/30°/40°
2700K/3000K/4000K/Tunable
≧90
D6-5-B
100-240Vac 50/60Hz
12
950lm
60°
2700K/3000K/4000K/Tunable
≧90
D6-5-B-D
100-240Vac 50/60Hz
15
1300lm
18°/30°/40°
2700K/3000K/4000K/Tunable
≧90
D6-6-C
100-240Vac 50/60Hz
18
1750lm
75°
2700K/3000K/4000K/Tunable
≧90
D6-8-C
100-240Vac 50/60Hz
30
2550lm
70°
2700K/3000K/4000K/Tunable
≧90
P/N
Input Voltage
Power
Lumen
Beam Angle
CCT
CRI
