Modus

Downlight

Product Features
Simplified Modular Design

Featuring an easy-to-use push-button design, this modular structure incorporates versatility. Modules can be effortlessly swapped by pressing, offering a variety of frameless and framed options, thus enhancing potential applications.

Efficient Heat Dissipation Design

The luminaire and heat sink are integrally formed, featuring a special airflow design to maximize heat dissipation efficiency and extend the lifespan of the product.

D121-1-A

100-240Vac 50/60Hz

5

320lm

24°/36°

2700K/3000K/4000K

≧90

D121-1-B

100-240Vac 50/60Hz

5

340lm

24°/36°

2700K/3000K/4000K

≧90

D121-1-C

100-240Vac 50/60Hz

5

330lm

24°/36°

2700K/3000K/4000K

≧90

D121-1-D

100-240Vac 50/60Hz

5

340lm

24°/36°

2700K/3000K/4000K

≧90

D121-1-E

100-240Vac 50/60Hz

5

340lm

24°/36°

2700K/3000K/4000K

≧90

D121-1-F

100-240Vac 50/60Hz

5

330lm

24°/36°

2700K/3000K/4000K

≧90

D121-1-G

100-240Vac 50/60Hz

5

270lm

Asymmetric wallwash

2700K/3000K/4000K

≧90

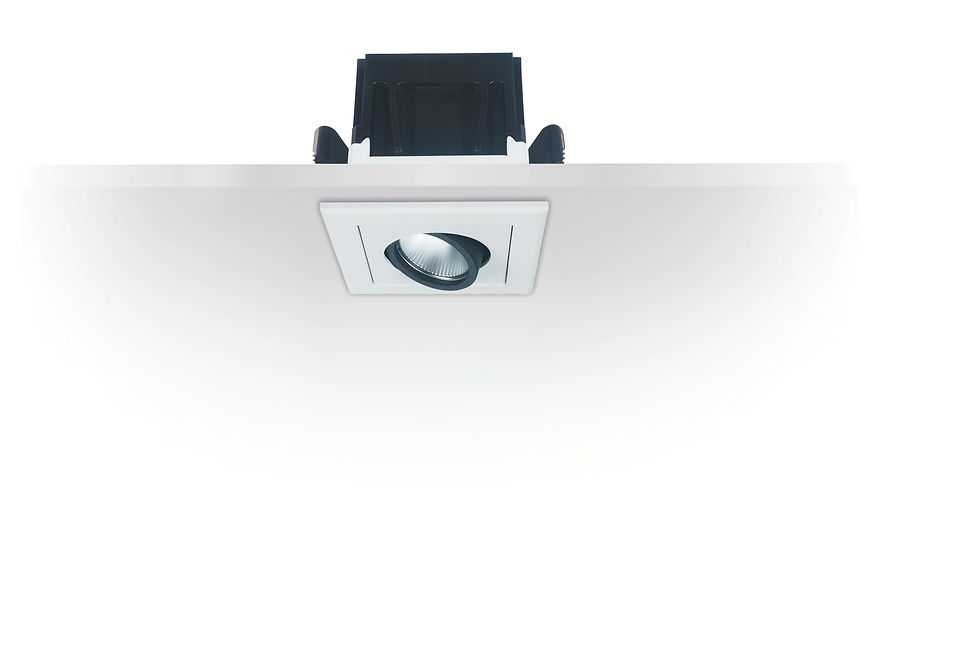

D121-1-H

100-240Vac 50/60Hz

5

380lm

24°/36°

2700K/3000K/4000K

≧90

D121-1-I

100-240Vac 50/60Hz

5

370lm

24°/36°

2700K/3000K/4000K

≧90

D121-2-J

100-240Vac 50/60Hz

7

620lm

24°/36°

2700K/3000K/4000K

≧90

D121-4-K

100-240Vac 50/60Hz

14

1340lm

24°/36°

2700K/3000K/4000K

≧90

P/N
Input Voltage
Power
Lumen
Beam Angle
CCT
CRI
