FlexRay - S71 Filter zoom


Product Features

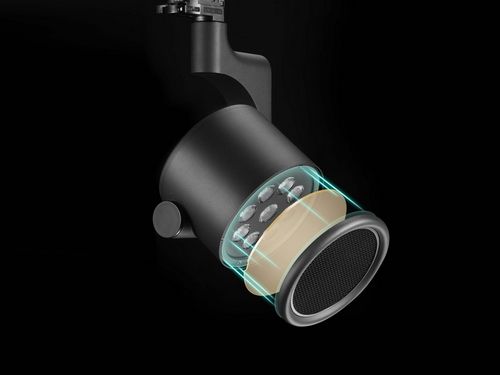

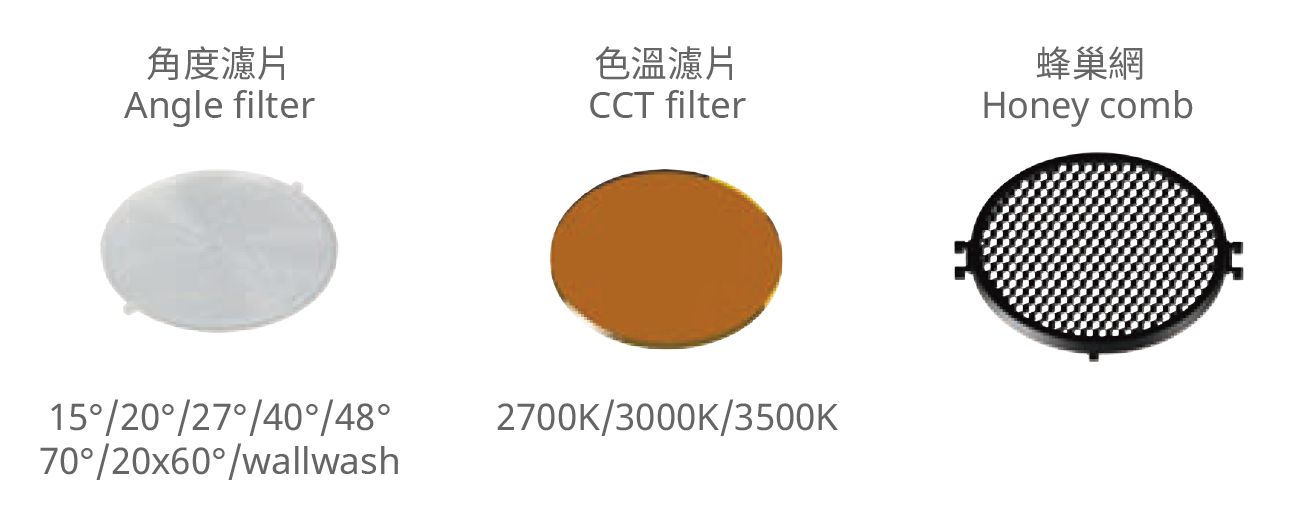

Rapid Replacement Optical Accessory Design

The optical accessory design is simple and efficient, easily meeting the needs of different exhibits. The magnetic suction and hot-swappable design allow users to effortlessly change various optical filter accessories, quickly adjusting the display effect. This saves time and costs, enhancing display flexibility.







Smart Control

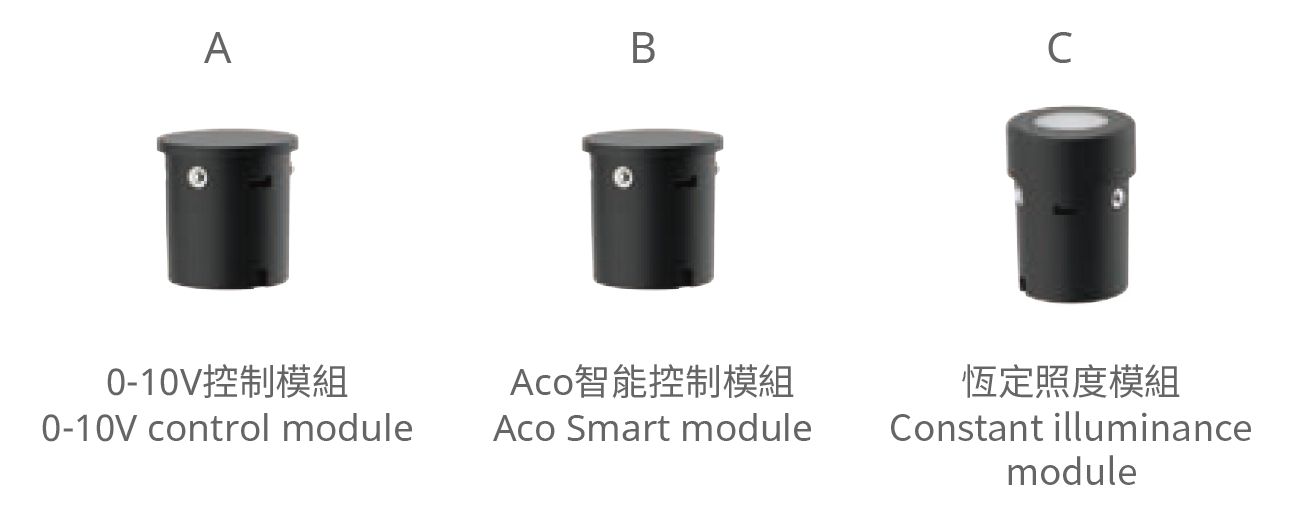

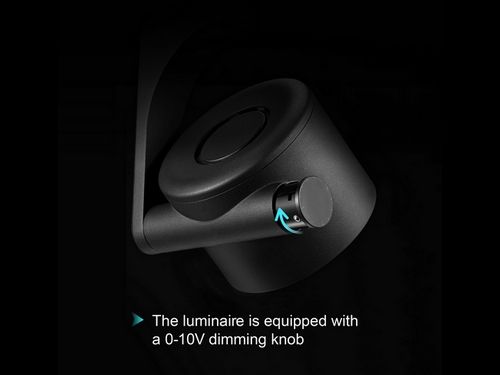

Users can make adjustments using a 0-10V dimmer knob without the need for tools. Coupled with the Aco smart control module and smartphone application, smart control can be achieved. Moreover, the three dimming modules are easily interchangeable, enhancing dimming efficiency and reducing the risk of damage to exhibits when replacements are made.







Flexible Orientation

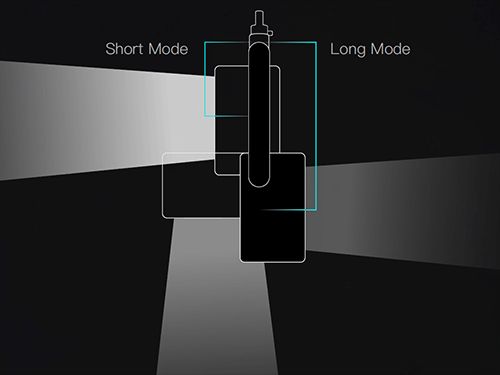

This series of lighting fixtures is designed with 360° horizontal and 180° vertical rotation capabilities, enabling users to easily adjust the light's angle, height, and position. The connection between the luminaire body and the supporting arm allows for free rotation, creating two different arm lengths. Such versatility ensures that a wide range of exhibition requirements can be easily met, overcoming the challenges of installing track lighting in places like museums and galleries.









Design Details

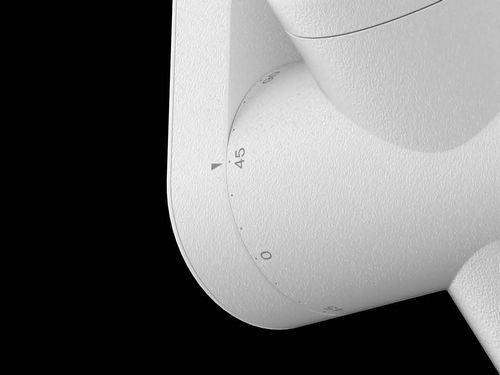

The support arm is fitted with adjustable angle indicators, making it easier for users to uniformly adjust the elevation of the lighting devices, thus achieving a more even distribution of light.

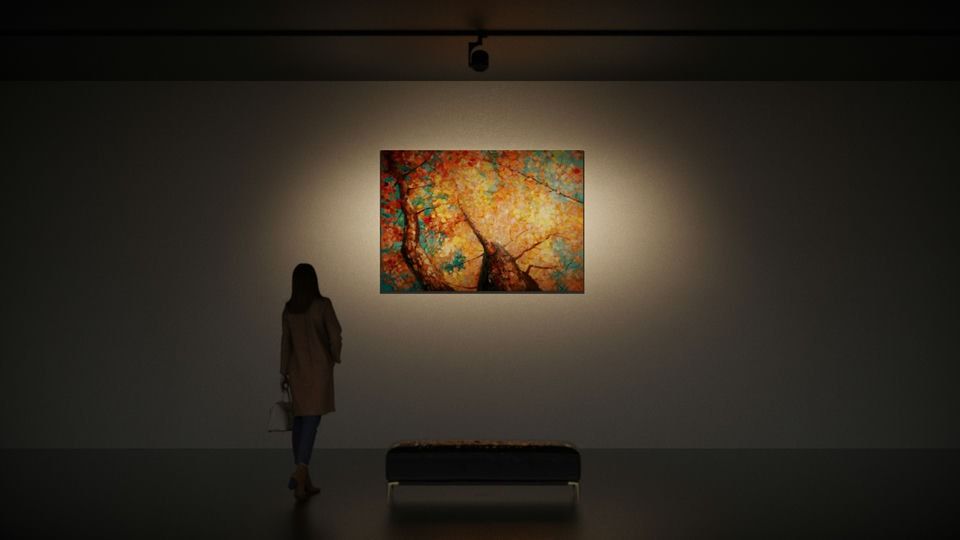

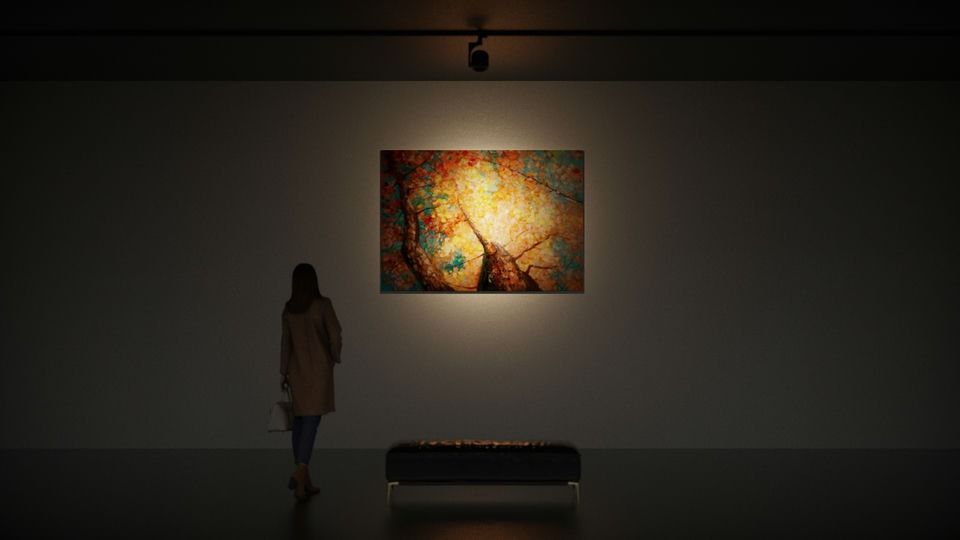

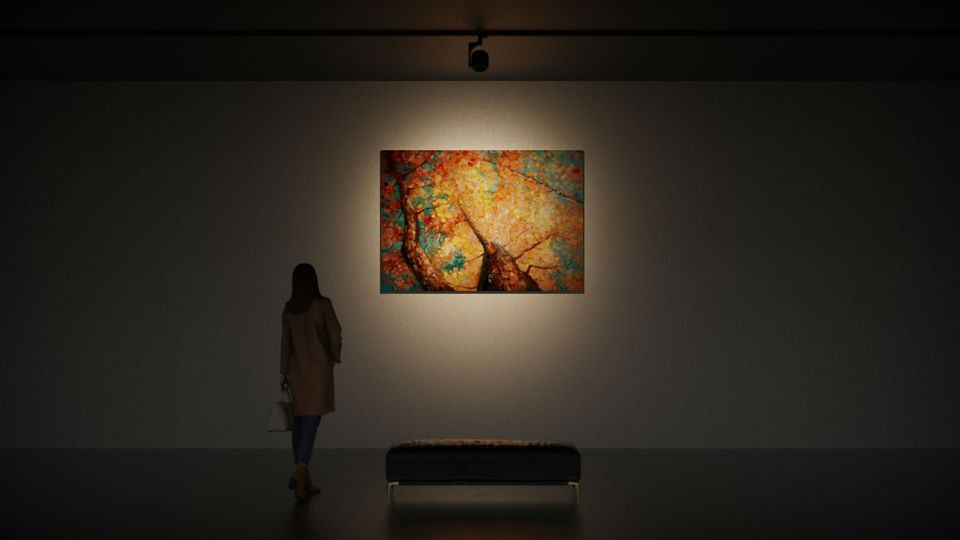

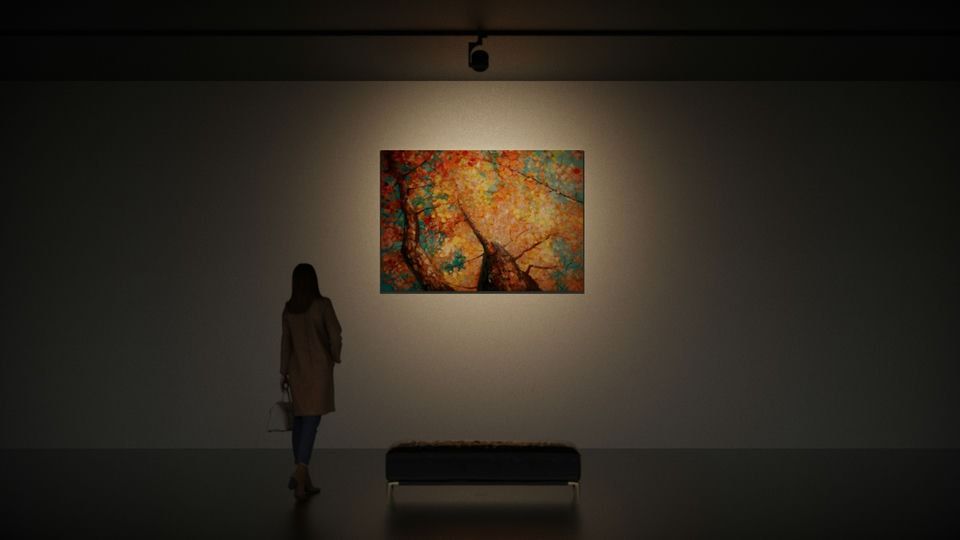

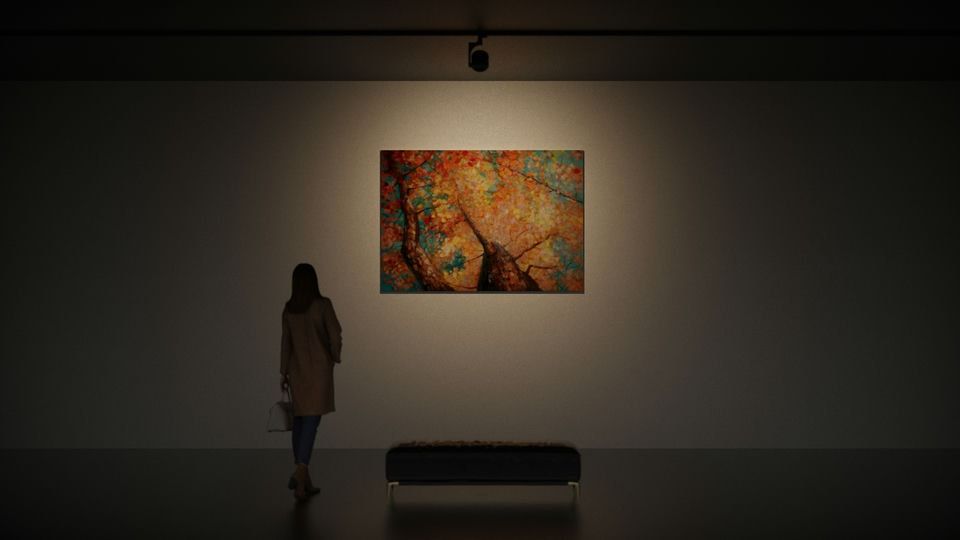

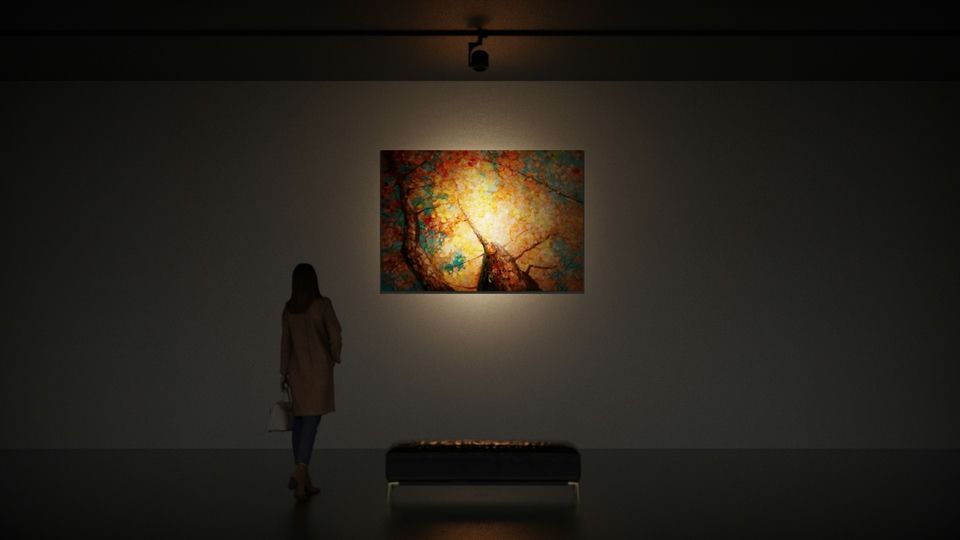

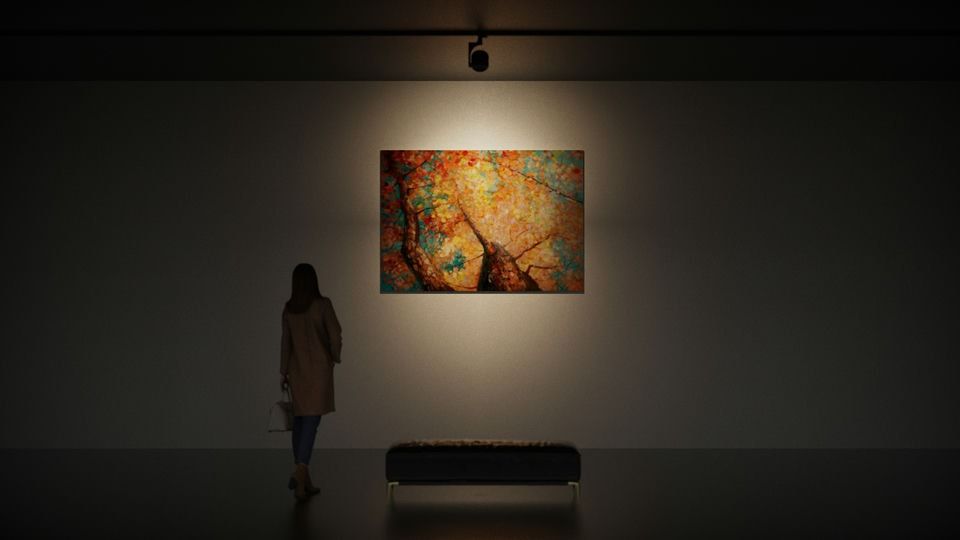

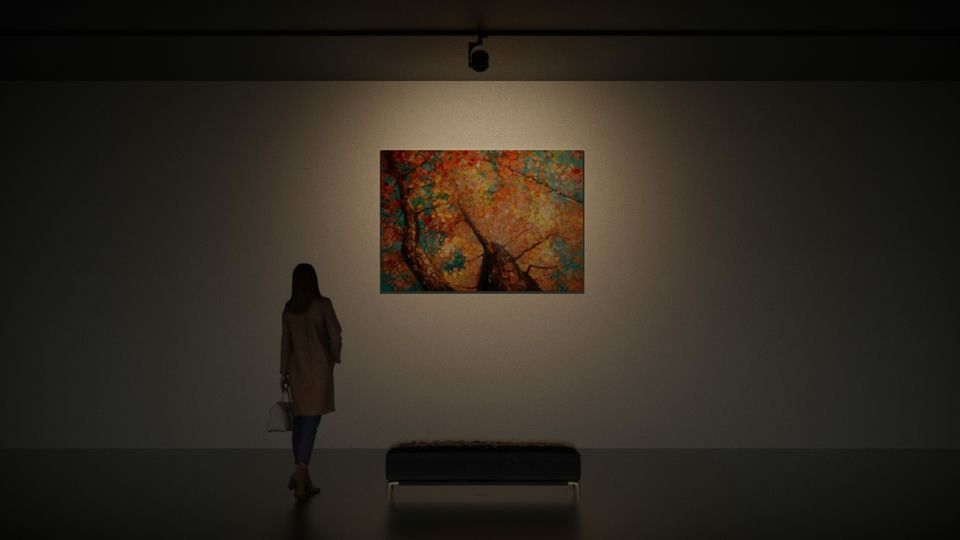

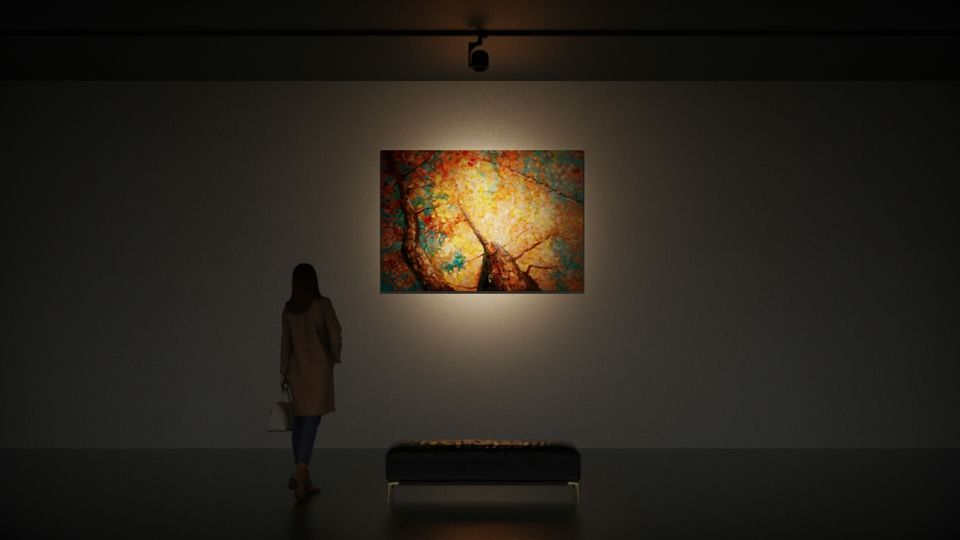

Light effect


Dot 1
  Dot 2  Dot 3  Dot 4  Dot 5  Dot 6  Dot 7  Dot 8  Dot 9











SPECIFICATION

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

  • Power

    9W

  • CRI

    ≥97

  • Luminous Flux

    410lm

  • CCT

    4000K <2SDCM

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    /

  • Dimming Control

    non-dim / 0-10V / DALI / ACO Smart / Constant illuminance module

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

  • Power

    27W

  • CRI

    ≥97

  • Luminous Flux

    1360lm

  • CCT

    4000K <2SDCM

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    /

  • Dimming Control

    non-dim / 0-10V / DALI / ACO Smart / Constant illuminance module

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

  • Power

    50W

  • CRI

    ≥97

  • Luminous Flux

    2570lm

  • CCT

    4000K <2SDCM

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    /

  • Dimming Control

    non-dim / 0-10V / DALI / ACO Smart / Constant illuminance module
